10% 800VDC 40UF Resonant Capacitor For UPS

Name: 10 800VDC 40UF Resonant Capacitor For UPS
Brand: GDHY
Price: 7.8 USD

Brand Name : GDHY

Model Number : C53801406JKF01M6-01

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA

MOQ : 50 PCS

Price : USD 7.8/PCS

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1000PCS/MONTH

Delivery Time : 14 DAYS

BRAND : GDHY

PLACE OF ORIGIN : GUANGZHOU, CHINA

SUPPLIER TYPE : ORIGINAL MANUFACTURER

CHARACTERISTICS : LOW ESL ESR, HIGH FREQUENCY HIGH CURRENT ENDURANCE, SELF HEALING.

CERTIFICATION : SGS, ISO

OPERATION TEMP : -40℃～70℃ Tmax 85℃

CAPACITANCE : 40UF

TOLERANCE : ±10%

DC VOLTAGE : 800VDC

TYPE : RESONANT CAPACITOR

APPLICATION : HIGH SPEED TRAIN, INVERTER, EPS, UPS, SVG, APF, AUTOMOBILE, HIGH VOLTAGE INVERTER.

TERMINAL : TIN PLATED COPPER

DIMENSION : L*D: 50*52 MM

INSTALLATION : BRACKET

PRINTING : LASER MARKING

CURRENT : 45A

ENCAPSUALTION : EPOXY RESIN FILLING

MATERIAL : POLYPROPYLENE FILM

Contact Now

10% 800VDC 40UF Resonant Capacitor For UPS C53 40UF 800VDC 10% METALLIZED POLYPROPYLENE FILM CAPACITOR HIGH VOLTAGE INVERTER, AUTOMOBILE TRACTION CONVERTER, UPS

Technical Parameter

Reference Standards	GB/T 17702 IE 61071
Operating Temperature Range	-40℃～70℃ Tmax 85℃
Capacity Range	40μF
Rated Voltage	800VDC
Capacity Tolerance	±10%(K)
Test voltage between electrodes	1.5Un DC/60S 20℃
Test voltage between electrode and case	1000+2X UN/√2(VAC) 50Hz 60S (min 3000VAC)
Dissipation Factor	tgδ≤2X10-3 0.0010 at 20℃,1KHz
Insulation Resistance	RsC≥5000S (20℃ 100VDC 60S)
Life Expectancy	100000hrs ( Un hotspot ≤ 70℃)

Specification download: C53.pdf

Application

Widely used DC-Link circuits, as a high frequency filtering and decoupling.
Direct coupling in power electronic equipment.

Feature

Polypropylene film dielectric.
Mylar tape packaging, sealed with epoxy resin.
Small size and easy installation.
Excellent high frequency and high current bearing capacity.

Product Picture

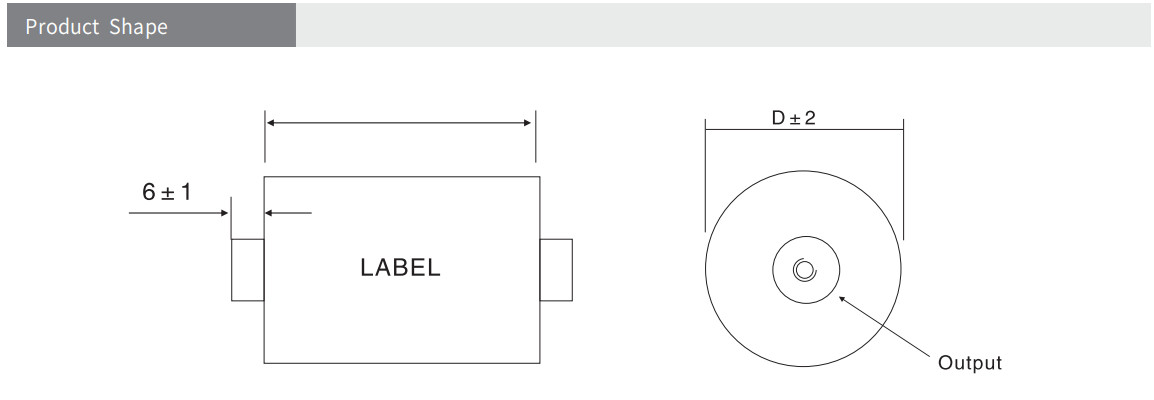

Product Shape
