C52 3.3UF/400V Polypropylene Film Capacitor safety performance

Name: C52 33UF400V Polypropylene Film Capacitor safety performance
Brand: GDHY
Price: 0.1 USD

C52 3.3UF/400V Polypropylene Film Capacitor safety performance Manufactures

Brand Name : GDHY

Model Number : C52-3.3UF/400V

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA

MOQ : 10KPCS

Price : 0.1 USD/ PCS

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1000 KPCS

Delivery Time : 14 DAYS

Packaging Details : plastic bag and carton

Place Of Origin : Guangzhou, China

Supplier Type : Original Manufacturer

Classification : Polypropylene Film Capacitor

Model number : C52401335JX12-01

material : Metallized polypropylene film

Operating Temperature Range : -40℃～70℃

Capacitance : 0.1UF

Capacity Tolerance : ±5%

Rated DC Voltage : 400VDC

Contact Now

C52 3.3UF/400V Polypropylene Film Capacitor safety performance

Technical Parameter

Reference Standards	GB/T 17702IEC 61071
Capacitance Range	5.0uF～90uF
Operating Temperature Range	-40℃~70℃
Rated Voltage	400VDC~1200VDC
Capacity Tolerance	±5%
Test voltage between electrodes	1.5UN(DC)60S 25C土5°℃
Test voltage between electrode and case	1000+2×UN/厂2(VAC)50Hz 60S (min 3000VAC)
Insulation Resistance	C·R≥5000S, at 100VDC,25℃±5℃, 60S

Application

Widely used in High Frequency, DC, AC, Pulse Circuits. S-correction circuits of the display device

Features

Polypropylene film dielectric
Plastic shell, encapsulation, dry resin infusion
Leads with Tinned copper wire, small size, Easy installation
High pulse current and high dv/dt.
Low ESL,low ESR,

Product picture

C52 3.3UF/400V Polypropylene Film Capacitor safety performance

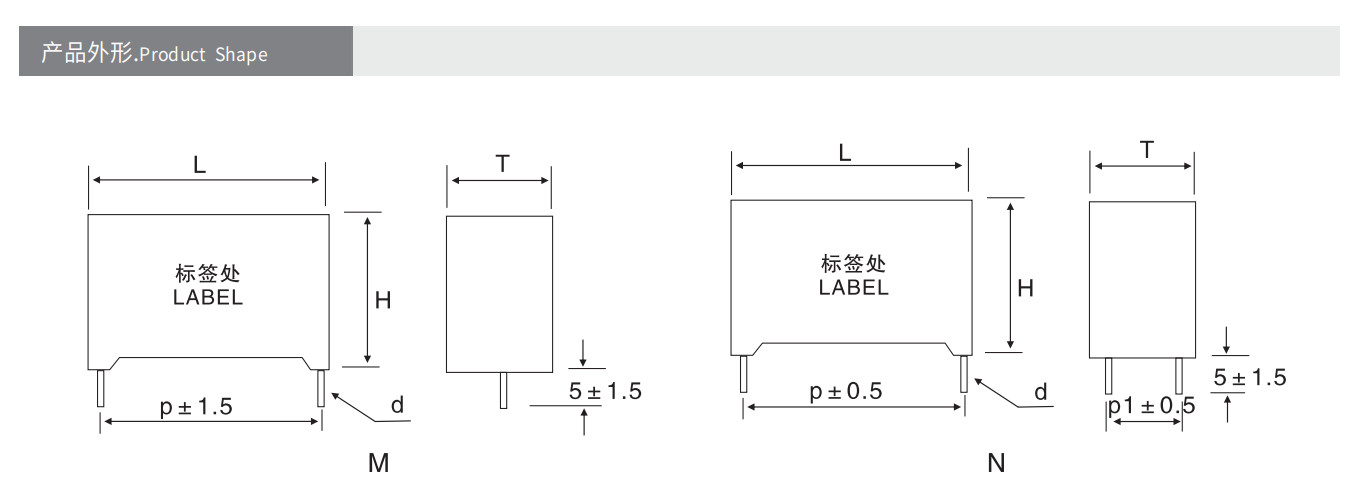

Product shape

C52 3.3UF/400V Polypropylene Film Capacitor safety performance

Production

C52 3.3UF/400V Polypropylene Film Capacitor safety performance

Workshop& Equipment

C52 3.3UF/400V Polypropylene Film Capacitor safety performance

Packing method

C52 3.3UF/400V Polypropylene Film Capacitor safety performance

Certificate

C52 3.3UF/400V Polypropylene Film Capacitor safety performance

Exhibition

C52 3.3UF/400V Polypropylene Film Capacitor safety performance

Product Tags:

C52-1UF/630V Film Capacitor

Less Noise Polypropylene Film Capacitor

Polypropylene Film Capacitor For AC Circuits
